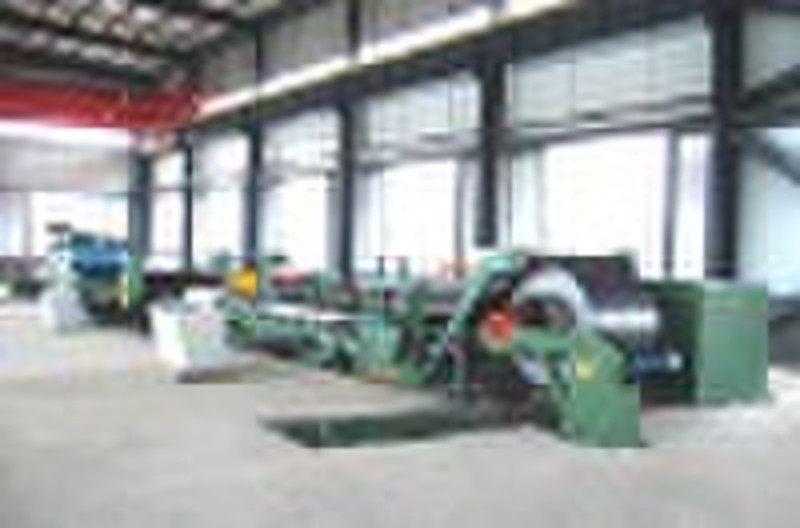

Slitting-recoiling line

Descriptions:When the rolling plate is unfolded and leveled. Then, the steel plate is slitted into the needed strips by using the rotary shear. After that, the strips are taken up with the recoiling machine and the formed narrow coils are paked.Features:a.Slitting accuracy and precision thanks to the machine solidity.b.Perfect recoiling.c.High efficiency for production.d.Delightful man-machine interface.e.Easy and simple maintenance.Process flow: 2.1 pressing & guiding1.Carry coil 2. load coil 3.decoil 4.shove-head 5. pinching& pre-leveling 6.transation 2.2 opener7.guide 8. slitting 9.transation 10.leveling 11.gauging 12.cross-cutting 13.coil falling 8.1scrap-rewinding 10.1tail-plate pinching14.collection 15. packing 16.packing & hanging awayModel:Sequence numberThinkness(mm)Width(mm)Speed (m/min)10.2-2400-16000-50-150 all kinds of grade20.3-3400-16000-50-120 all kinds of grade30.5-4500-22000-50-120 all kinds of grade40.8-6500-22000-50-100 all kinds of grade51-8500-22000-50-80 all kinds of grade62-10500-22000-30-15072-12800-22000-30-5083-14800-22000-30-5093-16800-23000-30-50105-20800-23000-30photos:NOT ALL THE PRODUCTS ARE LISTED, FOR MORE , PLEASE CONTACT THE SALES MANAGER,WE CAN MAKE ACCORDING YOUR REQUIREMENTS.
